Price 300000 आईएनआर/ Unit

मूल्य/उद्धरण प्राप्त करें

MOQ : 1 Unit

Specification

मॉडेल
DC 100

रोटेशन
Clockwise

प्रॉडक्ट टाइप
Centerless Grinding Machine

सामान्य उपयोग
Industrial Centerless Grinding

मटेरियल

टाइप करें

क्षमता
Maximum Grinding Diameter 50 mm

वजन (किग्रा)
980 kg

कम्प्यूटरीकृत

ऑटोमेटिक

सीएनसी या नहीं

कंट्रोल सिस्टम

टेबल स्लाइड वे

ग्राइंडिंग व्हील साइज
250 mm x 100 mm x 76.2 mm

ग्राइंडिंग व्हील स्पीड
1890 RPM

पीसने की लंबाई
100 mm

फ्लोर स्पेस
1200 mm x 800 mm

स्पिंडल स्पीड
1890 RPM

पावर
3 HP

वोल्टेज
415 V

आयाम (एल* डब्ल्यू* एच)
1200 mm x 800 mm x 1050 mm

फ़ीचर

रंग

Minimum Grinding Diameter
2 mm

Coolant Pump
0.15 HP

Belt Tension
Automatic

Accuracy
0.005 mm

Lubrication System
Centralized lubrication

Hydraulic Motor
0.5 HP

Main Motor
3 HP, 3 Phase

Working Height
1050 mm

Machine Finish
Anti-Corrosive Powder Coated

Feed Wheel Size
200 mm x 100 mm x 76.2 mm

Trade Information

Minimum Order Quantity
1 Unit

भुगतान की शर्तें
, , , , ,

आपूर्ति की क्षमता
प्रति महीने

डिलीवरी का समय
दिन

मुख्य निर्यात बाजार
, , , , , , , ,

मुख्य घरेलू बाज़ार

About

Type of Grinding Machine	Centerless
Grinding Material	Steel
Automation Grade	Semi-Automatic
Max. Table Load (kg)	1500 kg
Net Weight (kg)	2000 kg
Usage/Application	Industrial
Material	Mild Steel

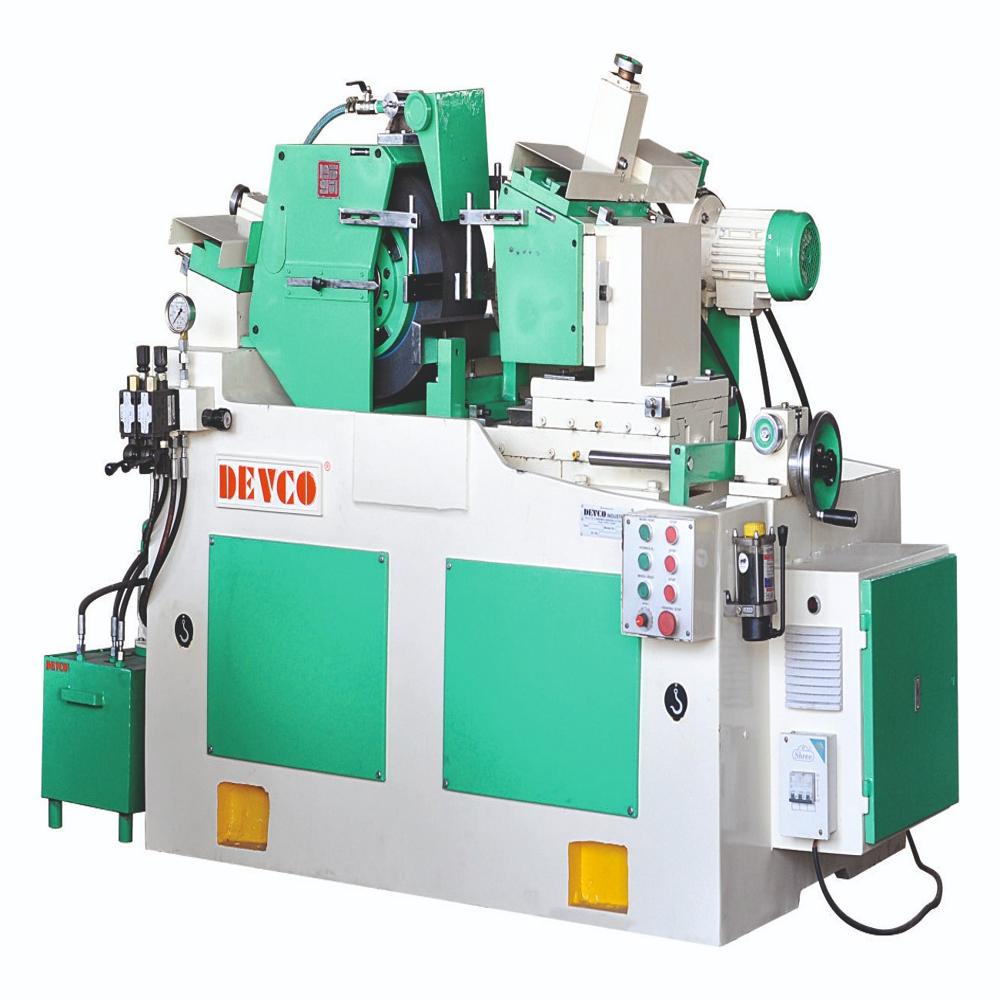

Mild Steel Devco DG-100 Centreless Grinding Machine

Robust Construction with Precision Accuracy

Crafted from high-quality mild steel and protected with an anti-corrosive powder coating, the DC 100 ensures longevity even under demanding conditions. Precision-ground components and rigid assembly enable repeatable accuracy up to 0.005 mm, making it ideal for tasks requiring tight tolerances. The machine's sturdy design and V and Flat table slide way guarantee stability throughout continuous industrial use.

Efficient, Low Maintenance Operation

The DC 100 is equipped with centralized lubrication and an automatic belt tension system, reducing the need for frequent upkeep and minimizing wear. Its rugged construction and low-maintenance components keep downtime to a minimum, ensuring consistent workflow and reducing long-term operating costs for manufacturers and suppliers.

User-Friendly Manual Controls

Designed without computerized or CNC components, the DC 100 features intuitive manual controls for flexible operation. Operators can finely adjust grinding parameters, ensuring precise, hands-on control over every grinding cycle. The manual system supports artisans and skilled machinists seeking custom results for diverse industrial applications.

FAQ's of DC 100 Centerless Grinding Machine:

Q: How does the DC 100 Centerless Grinding Machine achieve high precision during operation?

A: The DC 100 utilizes high-quality grinding wheels, stable v and flat-type slide ways, and a rigid structure to provide exceptional control and accuracy, maintaining a tight tolerance of up to 0.005 mm during operations.

Q: What types of materials and workpieces is this machine suitable for?

A: This machine is built for industrial centerless grinding of cylindrical workpieces, especially those made from mild steel. It supports grinding diameters ranging from 2 mm to 50 mm, making it versatile for various manufacturing sectors.

Q: When should the centralized lubrication system be checked or serviced?

A: The centralized lubrication system should be checked regularly-ideally at the start of each shift-to ensure smooth and consistent performance. Scheduled servicing according to the manufacturer's recommendations will enhance component longevity and operational reliability.

Q: Where can the DC 100 Centerless Grinding Machine be installed?

A: With a compact footprint of 1200 mm x 800 mm and a working height of 1050 mm, the DC 100 is suitable for industrial workshops, manufacturing plants, or tool rooms requiring efficient floor space utilization.

Q: What is the recommended process for setting up grinding operations on this machine?

A: Begin by securely setting the grinding and feed wheels, adjusting for the required diameter and length. Manually adjust controls using gauges and dials, incorporate workpiece supports as needed, and confirm proper lubrication and coolant flow before starting operations.

Q: What are the main benefits of using the DC 100 for industrial grinding?

A: Operators benefit from precision grinding, low maintenance requirements, automatic belt tensioning, and user-friendly manual controls. The durable, anti-corrosive design ensures long-term utility and cost-effective operation for manufacturers and suppliers.
